UCC21220D

Mfr.Part # : UCC21220D

Manufacturer : Texas Instruments

Description : 4-A, 6-A, 3.0-KVRMS ISOLATED DUA

Stock : 35000

Product Category : Isolators - Gate Drivers

Common Mode Transient Immunity (Min) : 100V/ns

Current - Output High, Low : 4A, 6A

Mounting Type : Surface Mount

Number of Channels : 2

Operating Temperature : -40°C ~ 125°C

Product Status : Active

Propagation Delay tpLH / tpHL (Max) : 40ns, 40ns

Pulse Width Distortion (Max) : 5.5ns

Rise / Fall Time (Typ) : 5ns, 6ns

Supplier Device Package : 16-SOIC

Technology : Capacitive Coupling

Voltage - Isolation : 3000Vrms

Voltage - Output Supply : 9.2V ~ 18V

Contact Now

Wholesale UCC21220D from china suppliers

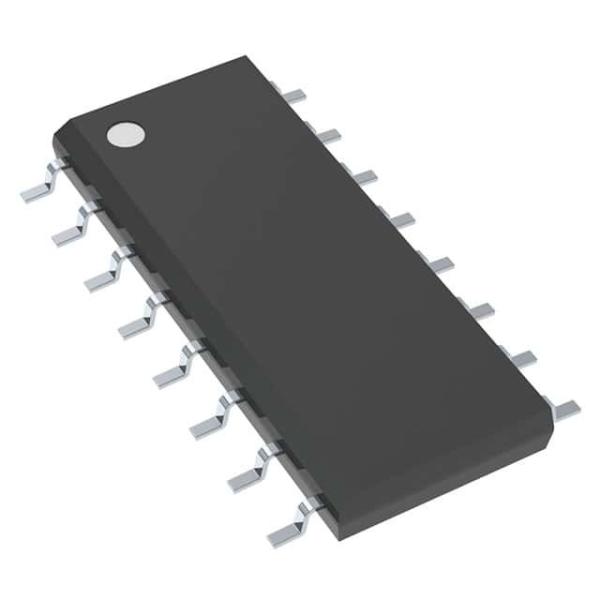

UCC21220D Images
