109R

Mfr.Part # : 109R

Manufacturer : Hammond Manufacturing

Description : TRANSFORMER AUDIO 10KCT/1.5KCT

Stock : 35000

Product Category : Audio Transformers

DC Resistance (DCR) - Primary : 384Ohm

DC Resistance (DCR) - Secondary : 58Ohm

Frequency Range : 300Hz ~ 50kHz

Frequency Response : ±1.5dB

Impedance - Primary (Ohms) : 10kCT

Impedance - Secondary (Ohms) : 1.5kCT

Mounting Type : Through Hole

Power Level : 2W

Product Status : Active

Termination Style : PC Pin

Transformer Type : Miniature Epoxy Potted

Turns Ratio - Primary:Secondary : 5.16:1

Voltage - Isolation : 100VRMS

Contact Now

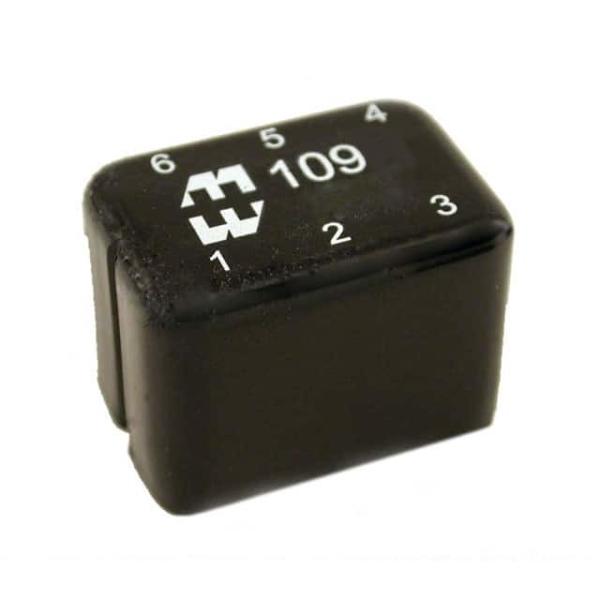

109R Images
