DPX162690DT-8039B1

Mfr.Part # : DPX162690DT-8039B1

Manufacturer : TDK Corporation

Description : MULTILAYER DPX FOR UMTS/LTE/5G

Stock : 7984

Product Category : RF Multiplexers

Frequency Bands (Low / High) : 1.88GHz ~ 1.92GHz / 2.496GHz ~ 2.69GHz

High Band Attenuation (min / max dB) : 15.00dB / 22.70dB

Low Band Attenuation (min / max dB) : 10.00dB / 13.40dB

Mounting Type : Surface Mount

Package / Case : 0603 (1608 Metric), 6 PC Pad

Product Status : Active

Return Loss (Low Band / High Band) : 10.0dB / 10.0dB

Type : Diplexer

Contact Now

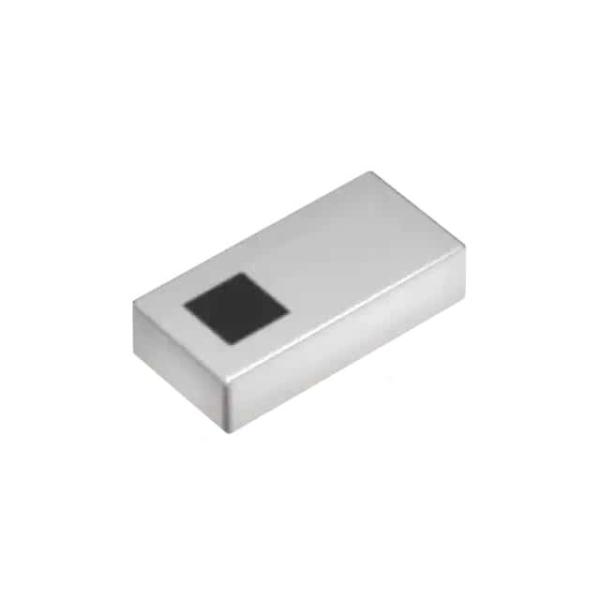

DPX162690DT-8039B1 Images
