ZX80-DR230-S+

Mfr.Part # : ZX80-DR230-S+

Manufacturer : Mini-Circuits

Description : SPDT RF SWITCH / SMA / ROHS

Stock : 28

Product Category : RF Switches

Circuit : SPDT

Frequency Range : DC ~ 3GHz

IIP3 : 55dBm

Impedance : 50Ohm

Insertion Loss : 1.2dB

Isolation : 48dB

Operating Temperature : -40°C ~ 85°C

P1dB : 80dBm

Package / Case : Module, SMA Connectors

Product Status : Active

RF Type : General Purpose

Test Frequency : 3GHz

Topology : Absorptive

Voltage - Supply : 2.7V ~ 5V

Contact Now

Wholesale ZX80-DR230-S+ from china suppliers

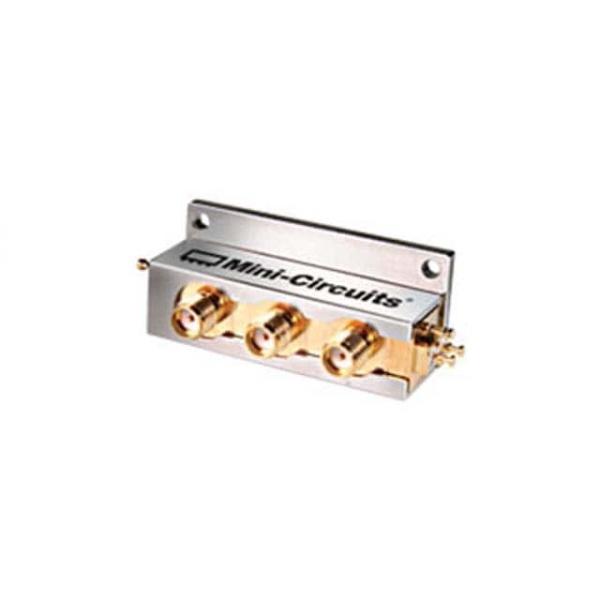

ZX80-DR230-S+ Images
